Portfolio requires these ports to allow incoming connections:
- 8085 - NetPublish sites (HTTP)
- 8090 - Portfolio Web and Portfolio API (HTTP)
- 8091 - Portfolio Administration (HTTP)
- 8095, 8086, 8085, 8096 - NetPublish sites (HTTPS)
- 9443 - Portfolio Web and Portfolio API (HTTPS)
- 9453 - Portfolio Administration (HTTPS)
Portfolio must connect to external servers over these ports, if used:
- 389 - LDAP access to Active Directory for directory integration
- 443 - HTTPS access to cwsg.extensis.com for Extensis product licenses and api.clarifai.com to use the Smart Keywords feature
- 445 - SMB/CIFS access to files and folders on network shares
- 548 - Apple File Protocol (AFP) access to files and folders on legacy macOS network shares
- 636 - LDAPS (LDAP over SSL) access to Active Directory for directory integration
- 9877 - HTTP access to Portfolio external media engines
Additional Ports Used (Not shown in the image below):
- 25432 - PostGres
- 40372 - MediaEngine (Local)
- 9877 - MediaEngine (External)
- 9200, 9300 - ElasticSearch
- 8888 - Imagery Engine
- 37017 - Vault
- 8089 - Apache Tomact

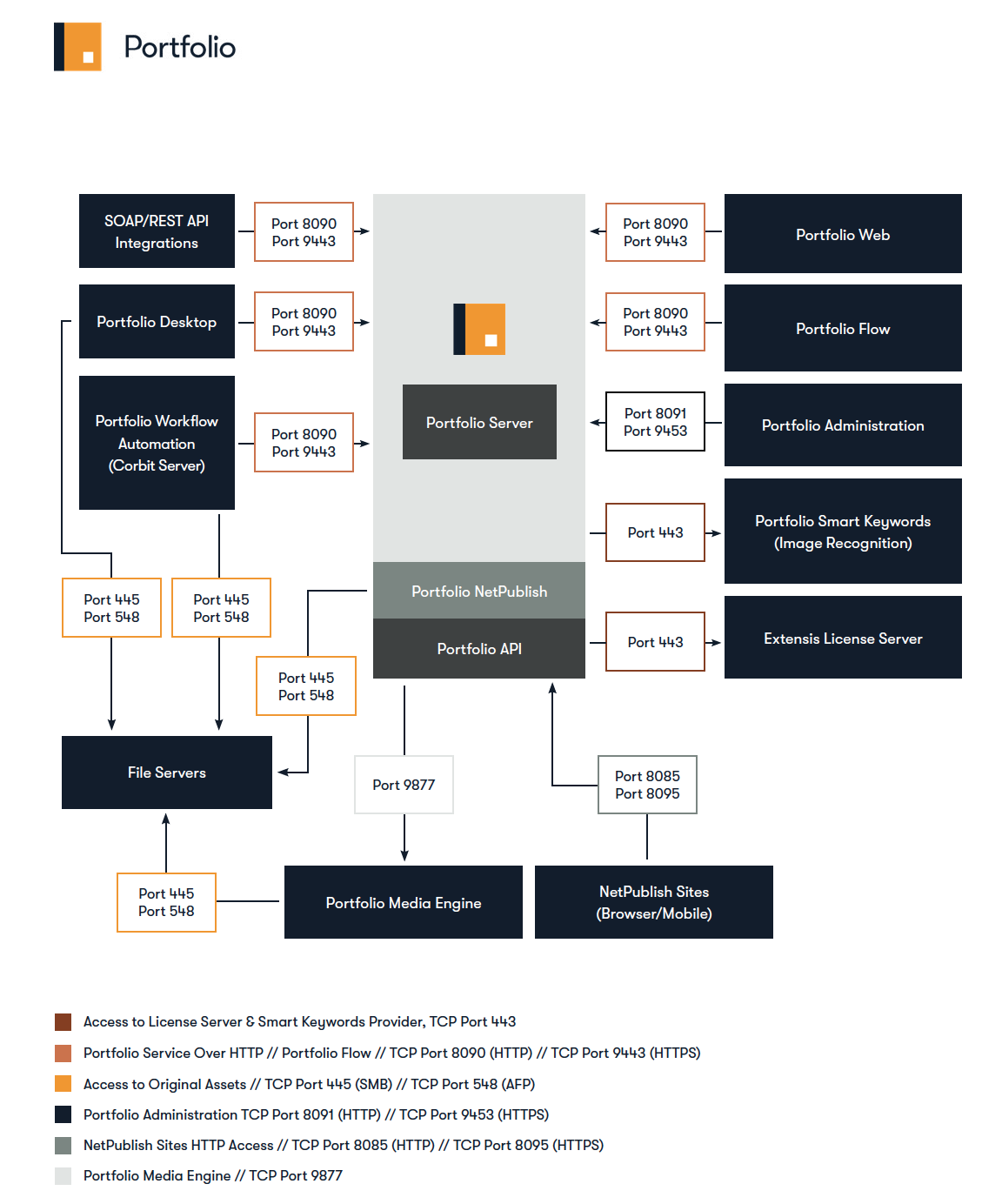

You can download a PDF of the above diagram showing the connections between Portfolio and its components.
